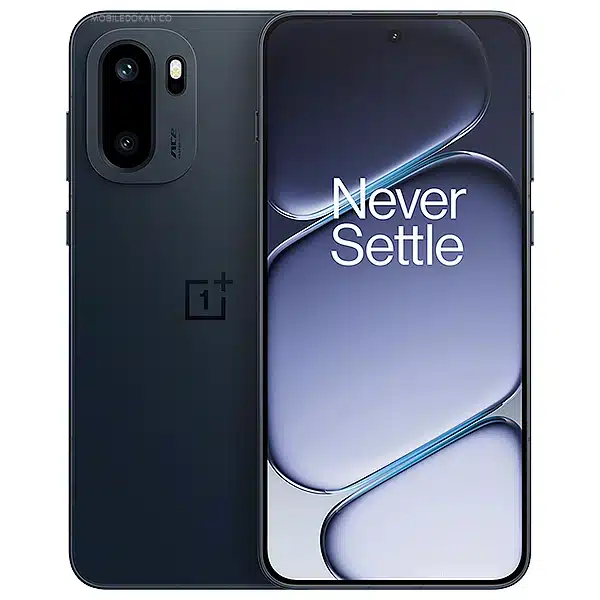

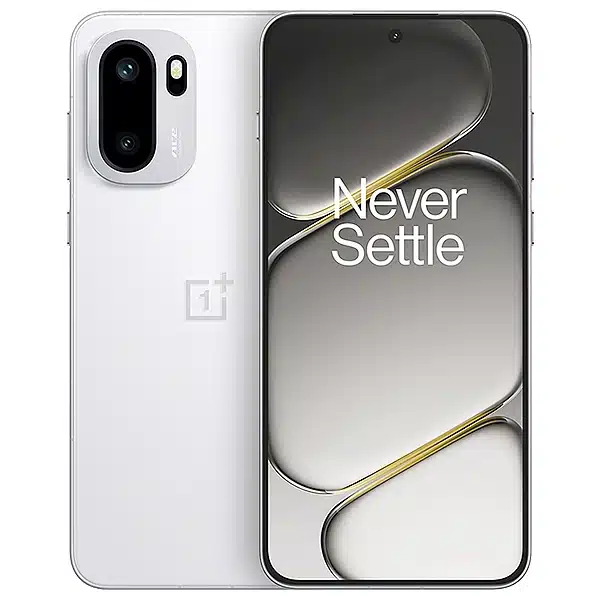

OnePlus Ace 6
PROS
- 1 IP68/IP69K and Aluminum frame.
- 2 6.83-inch LTPO AMOLED, 165Hz refresh.
- 3 Snapdragon 8 Elite and 12/16GB RAM.
- 4 Stereo speakers, NFC and Infrared port.
- 5 7800mAh Si/C battery with 120W charging.
CONS
- 1 Dual rear camera with 8MP.
- 2 FM is not supported.
- 3 No 3.5mm audio jack.
Specification
Network
| Technology | GSM / HSPA / LTE / 5G |
| 2G bands | GSM 850 / 900 / 1800 / 1900 |
| 3G bands | HSDPA 800 / 850 / 900 / 1700(AWS) / 2100 |
| 4G bands | 1, 3, 4, 5, 8, 18, 19, 26, 28, 34, 38, 39, 40, 41, 42, 43, 48, 66 |
| 5G bands | 1, 3, 5, 8, 18, 26, 28A, 38, 40, 41, 48, 66, 77, 78 SA/NSA |
| Speed | HSPA, LTE-A (CA), 5G |
Body
| Dimensions | 163.4 x 77 x 8.3 mm (6.43 x 3.03 x 0.33 in) |
| Weight | 213 g (7.51 oz) |
| Build | Glass front (Crystal Shield Glass), glass back (Crystal Shield Glass), aluminum frame |
| SIM | Nano-SIM + Nano-SIM |
| Others | IP68/IP69K dust tight and water resistant (high pressure water jets; immersible up to 1.5m for 30 min) |
Display
| Type | LTPO AMOLED, 1B colors, 165Hz, PWM, HDR10+, Dolby Vision, HDR Vivid, 800 nits (typ), 1800 nits (HBM) |
| Size | 6.83 inches, 113.3 cm2 (~90.1% screen-to-body ratio) |
| Resolution | 1272 x 2800 pixels (~450 ppi density) |
| Protection | Crystal Shield Glass |
Platform
| OS | Android 16, ColorOS 16 |
| Chipset | Qualcomm SM8750-AB Snapdragon 8 Elite (3 nm) |
| CPU | Octa-core (2x4.32 GHz Oryon V2 Phoenix L + 6x3.53 GHz Oryon V2 Phoenix M) |
| GPU | Adreno 830 |
Memory
| Card slot A special slot for inserting a memory card. Memory cards allow you to expand the phone's built-in memory (or in the past these slots have been used to add some missing features such as Wi-Fi connectivity). Memory cards have different capacities and are used to store and transfer files between compatible devices. There are several types of memory cards. The most popular and frequently used by mobile phone manufacturers is microSD; however, up until recently Sony Ericsson exclusively used the Memory Stick Micro (M2) card type developed by Sony. | No |
| Internal Storage | 256/512 GB / 1TB |
| RAM | 12/16 GB |
| Variant A phone variant is a specific model or version of a phone that differs slightly from other versions of the same phone from the same manufacturer. These differences can include variations in colors, sizes, features, specifications, or other attributes that distinguish one variant from another. For example, smartphones can have different storage capacities and colors, and different iPhone variants can have different cellular bands. | 12GB 256GB / 16GB 256GB / 12GB 512GB / 16GB 512GB / 16GB 1TB |
Camera
| Dual A camera is a device that captures light and processes it into an image. It does this through a lens, which focuses the light onto a light-sensitive surface where a picture is formed. This could be film in traditional cameras or an electronic sensor in digital cameras. | 50 MP, f/1.8, 24mm (wide), PDAF, OIS 8 MP, f/2.2, 16mm, 112˚ (ultrawide), 1/4.0", 1.12µm |
| Features | Color spectrum sensor, LED flash, HDR, panorama HDR, panorama |
| Video The meaning of VIDEO CAMERA is a camera that records video and usually audio | 4K@30/60/120fps, 1080p@30/60/120fps, gyro-EIS, OIS |
| Selfie camera | 16 MP, f/2.4, 23mm (wide), 1/3", 1.0µm |
More
| Loudspeaker | Yes, with stereo speakers |
| 3.5mm jack | No |
| WLAN | Wi-Fi 802.11 a/b/g/n/ac/6/7, dual-band |
| Bluetooth | 5.4, A2DP, LE, aptX HD, aptX Adaptive, LHDC 5 |
| GPS | GPS (L1+L5), GLONASS (G1), BDS (B1I+B1c+B2a), GALILEO (E1+E5a), QZSS (L1+L5), NavIC (L5) |
| NFC | Yes |
| FM radio Mobile phones that support FM radio have a dedicated FM radio receiver chip. This chip is responsible for receiving FM radio signals and converting them into audio signals that can be played through the phone's speakers or headphones. | No |
| USB | USB Type-C 2.0 |
| Infrared port An infrared (IR) port is a port on an electronic device that sends and receives data using infrared light. IR ports were commonly used in wireless devices to allow for fast communication with other devices, such as base stations. IR ports work by allowing two devices to face each other and share data using infrared rays within a range of 10 meters. | |
| Sensors | Fingerprint (under display, ultrasonic), accelerometer, gyro, proximity, compass |
| Battery Type | Non-removable Si/C Li-Ion |
| Battery Capacity | 7800 mAh |
| Charging | 120W wired, 120W UFCS, 55W PPS, 18W PD, 18W QC, 58% in 20 min, 100% in 43 min Bypass charging |
| Made by | China |
| Color | Black, White, Silver |
| Models | PLQ110 |
